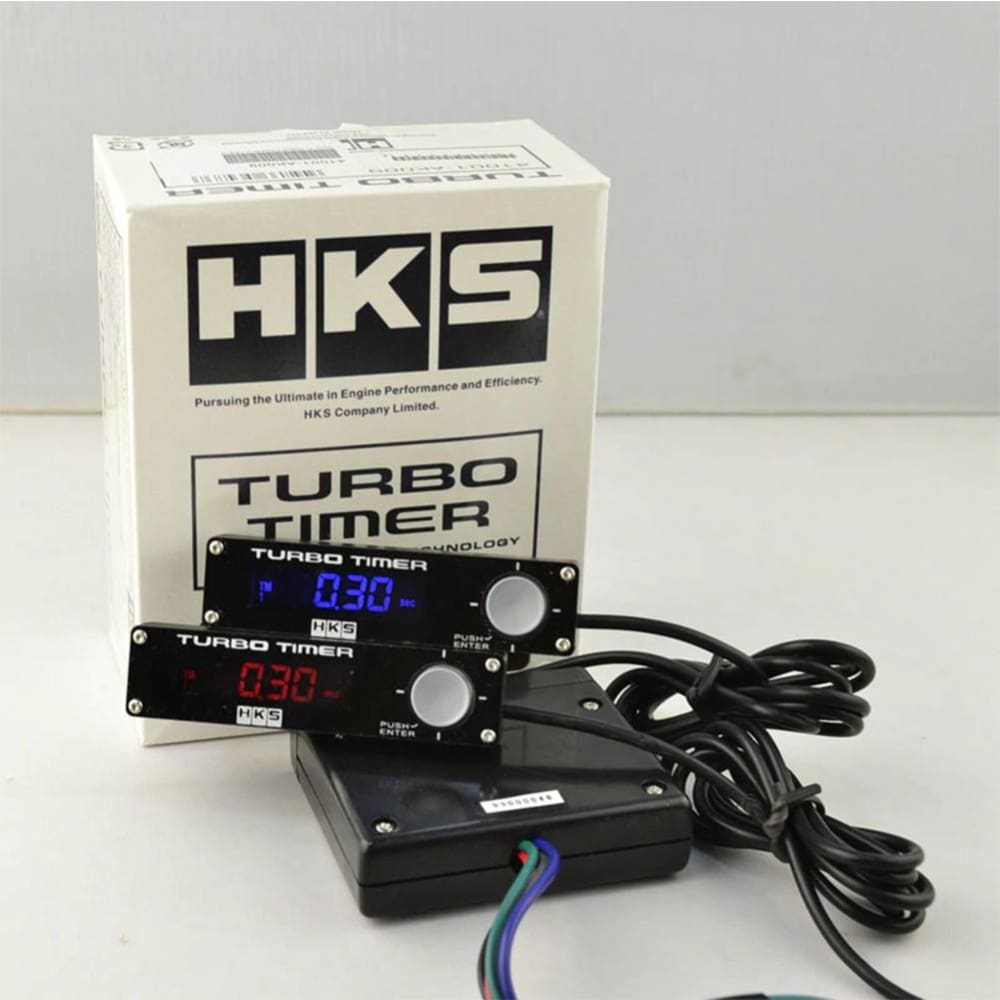

HKS Turbo Timer Compact 9th Model
- DC12V Negative Ground (Operation Voltage: DC101～16V)
- Large Capacity Relay Equipped
Ignition: 25A / Accessary: 25A
- Stand-by Current: 10mA or lower
- Operating Temperature: -20～60℃ (-4 to 140°F)
- Setting Time Range: ：1, 3, 5, 10, and 30 min.
- Simple after-idling function and easy operation
- Optimal touch button size for simple operation
- Wavy panel design around the button for better operability. Capable of operating the button even in the dark.
- Accurate setting is possible even by quick operation.
- One-digit display for easy recognition of the set time
- Time duration changed simply by pushing the button. Intuitive operations is possible.
- Selecting "OFF mode" turns off the display and buzzer.
